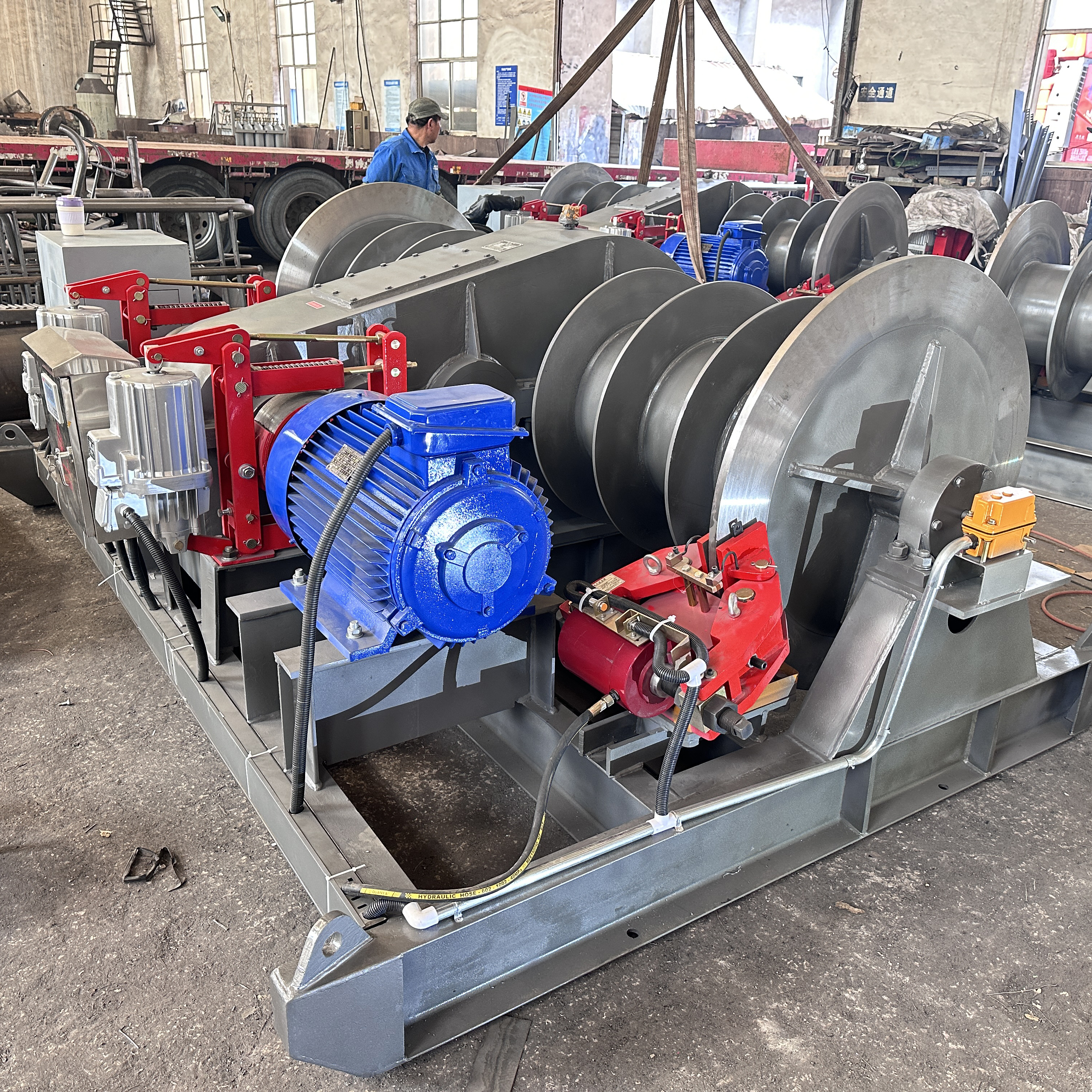

2JM10×6 Dual Braking

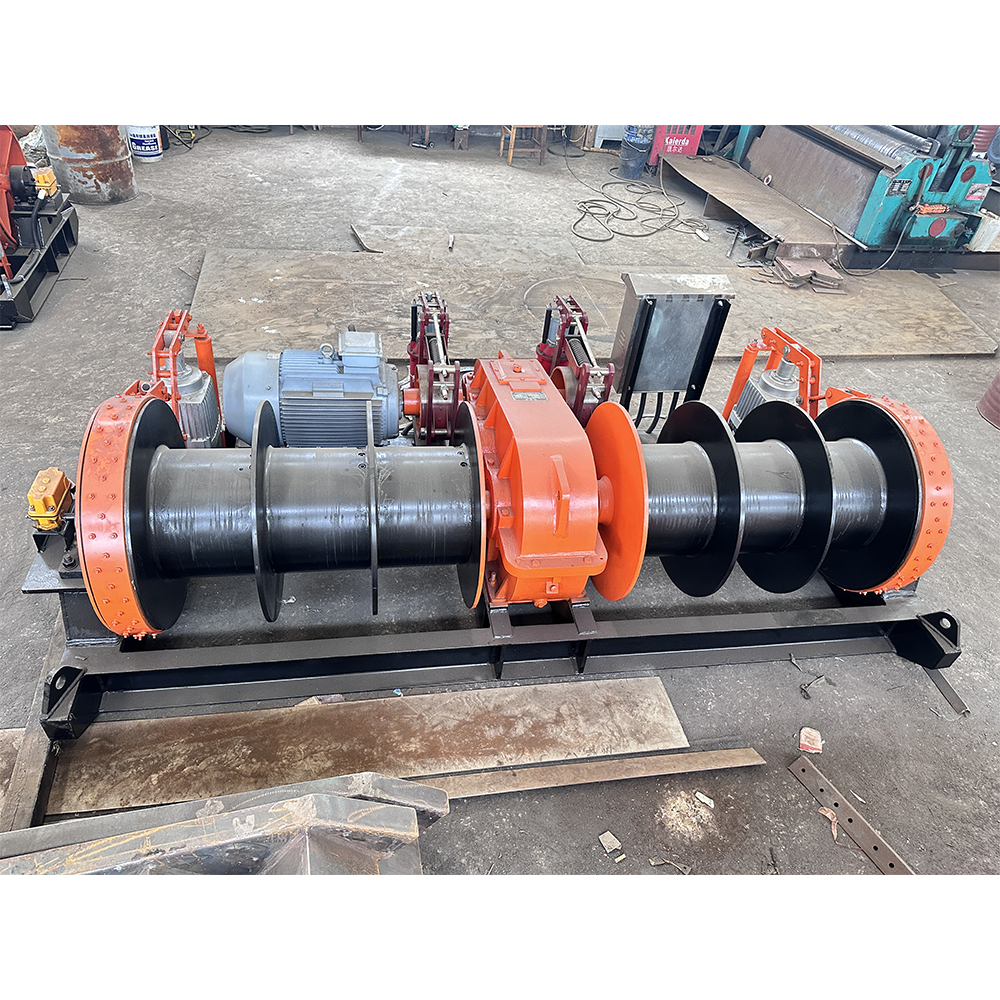

2JM8×6 Belt Type Slow Double Barrel Winch
2JM10x6 Arm Style
2JM10x6 Clamp Disc Type
2JM10 Tons Screw Winch
2JM12.5T Electromagnetic Winch
Introduction
| Basic Parameters/Models | JM6*4 | 2JM6*6 | 2JM8*6 | 2JM10*6 | 2JM10*8 | 2JM12.5*6 | 2JM15*6 |
| Wire Rope Tensile Rating (kn) | 60 | 60 | 80 | 100 | 100 | 125 | 150 |
| Wire Rope Rated Speed (m/min) | 8.5 | 7.6 | 7.5 | 7.8 | 8 | 8.5 | 9 |
| Minimum Diameter Of Wire Rope (mm) | 18 | 20 | 20 | 20 | 20 | 20 | 24 |
| Rope Capacity Of Drum (m) | 4*80 | 6*100 | 6*80 | 6*100 | 8*100 | 6*120 | 6*120 |
| Drum Diameter (mm) | 400 | 400 | 400 | 400 | 400 | 500 | 550 |
| Drum Length (mm) | 250 | 250 | 250 | 250 | 760 | 300 | 300 |
| Motor Type | YZR160L-6 | YZR180L-6 | YZR180L-6 | YZR200L-6 | YZR200L-6 | YZR225M-6 | YZR250M |
| Motor Power (kw)) | 11kw | 15kw | 15kw | 22kw | 22kw | 30kw | 37KW |
| Hydraulic Brake | YWZ300/45 | YWZ300/45 | YWZ300/45 | YWZ300/45 | YWZ300/45 | YWZ300/50 | YWZ400/90 |
| Reduction Gear | ZL500 | ZL500 | ZL650 | ZL850 | ZL850 | ZL1100 | ZS975 |
| Machine Dimensions (L * W * H) | 1813*1498*870 | 2600*2508*1449 | 2930*1620*870 | 3254*1841*1090 | 3200*1750*1100 | 3284*2145*1170 | 3580*2400*1200 |
| Machine Weight (kg) | 2300 | 2200 | 2600 | 3300 | 3900 | 3600 | 4500 |
